QFM Group Ltd – Food Grade Flooring

If you like what you see call us today for a FREE SITE SURVEY on 01562 702047
QFM Group Ltd based in Sheffield are one of the UK’s leading Multi-site and Multi-brand franchise businesses called in PSC to refurbish the production floor area at new Dunkin Donunts facility at Blackburn.

The floor area totalling 347 sq metres, required a nominal 6mm Resdev RT polyurethane screed, with 100mm high polyurethane cove system to 244 linear metres. In preparation it was necessary to remove the extensive build-up of laytex, adhesive, mortar and nominal 6mm of polyurethane screed, using small 320 planers, scarifiers, PCD disk grinders and the doubled headed diamond grinding machine.

The edgework was then prepared with a totally enclosed handheld 110v diamond grinder and the area was vacuumed clean of all residues and dust.

10mm x 10mm saw cuts were made to door thresholds, around drains and gullies and perimeter of floor area and where necessary to toe in and anchor screed. Repairs were made to damaged concrete, where walls have been knocked out, using polyurethane mortar compound and holes and damaged concrete repaired in the former KFC section, totalling circa 100 sq metres, using polyurethane mortar compound and resin screed.

6mm aluminium movement joints were fitted to all door entrances and where necessary, before a nominal 6mm heavy duty Resedv Pumadur RT polyurethane, textured, matt screed was laid in the clients chosen colour – mid grey, to existing concrete contours and to 6 stair treads. Existing expansion joints were recut, knocked out and infilled with matching jointing compound and one coat of Resdev, Pumadur DD polyurethane seal coat, clear, silk was applied.

100mm high, 50mm radius Coving system was installed to 244 linear metres including to 7 upstands, circa 200mm high using Resdev Pumadur CG polyurethane coving system.

The floor and the coving look great; PSC have done an amazing job.
Mr Arjun Patel

QFM Group Ltd

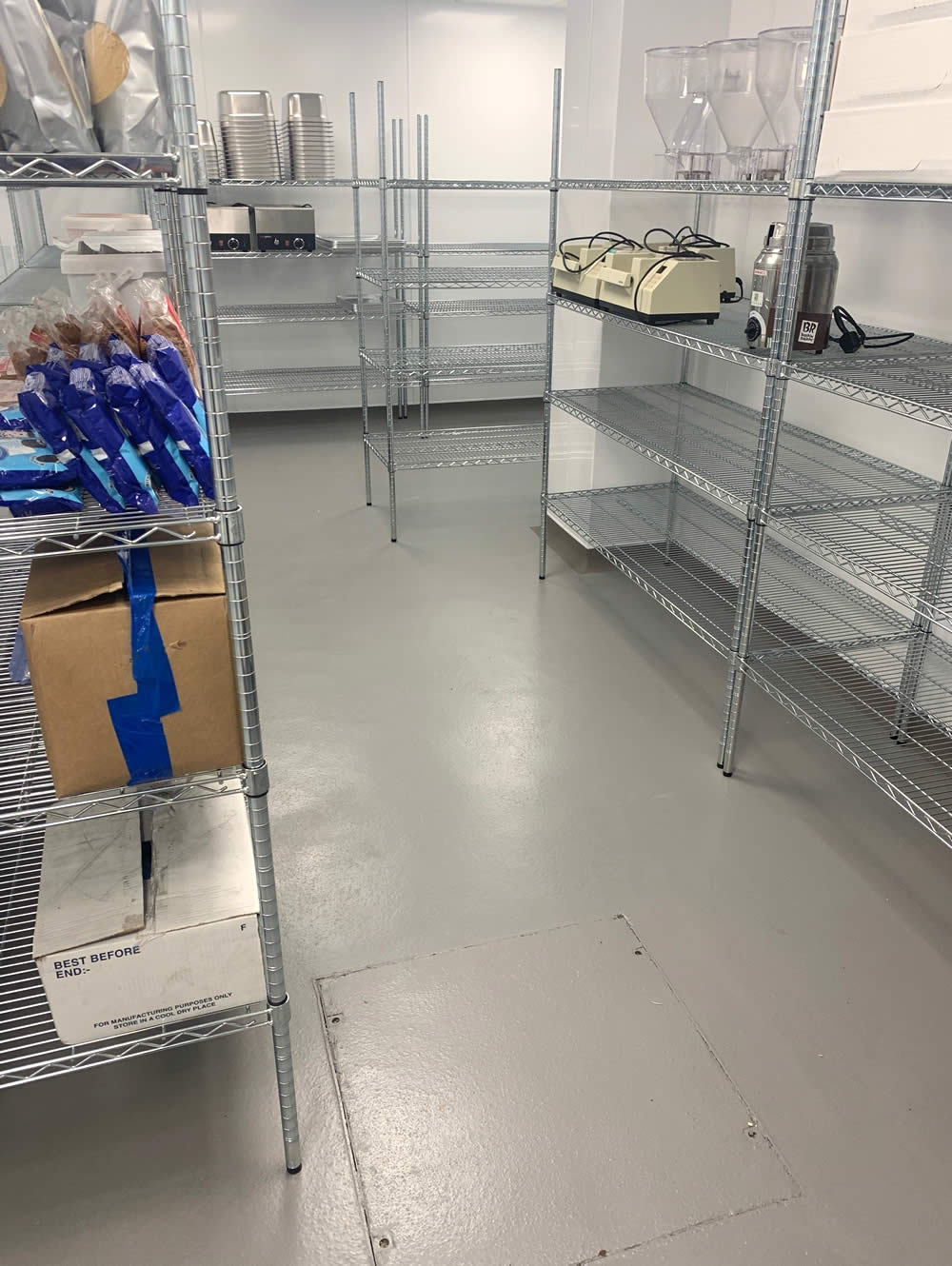

Click images below to view larger version :
